Oem Diagnostics Diesel ABS Software Nexiq Toughbook Bundle WABCO TOOLBOX PLUS Haldex Bendix ACOM Wabash

$3 495.00
In stock
Product Details

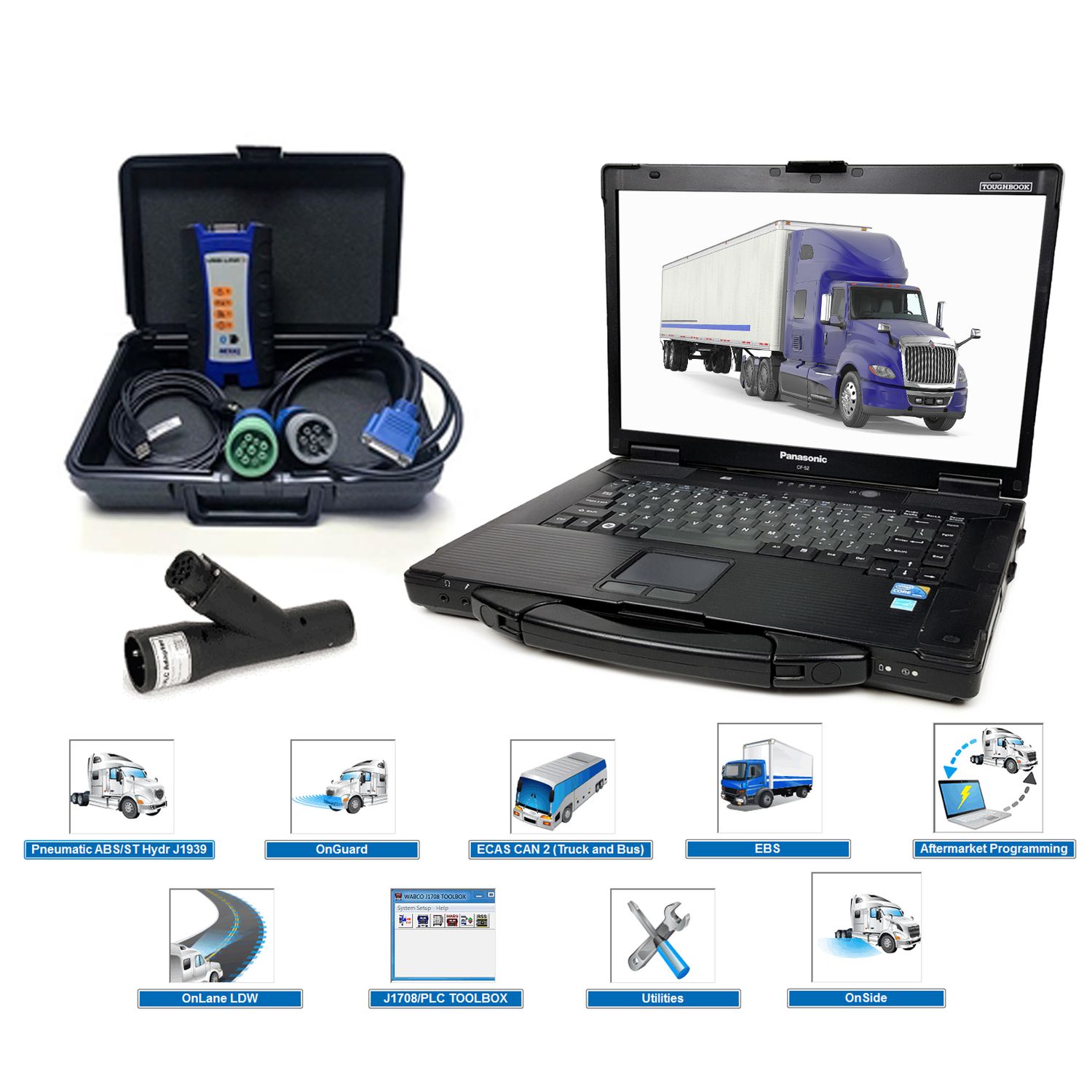

  • Heavy Duty ABS Factory Dealer Trailer Toughbook Kit Includes:

    Heavy Duty Diagnostic Toughbook, Solid State SSD Hard Drive included

    2 Year Full Factory Warranty

    All Software Applications Loaded and Registered to the purchaser

    WABCO TOOLBOX PLUS, Bendix Acom, Wabash Haldex

    Nexiq USB Link 3 (121052) Wireless Edition Adapter

    Nexiq PLC Trailer Adapter

    Trailer Software Applications:
    WABCO Haldex PLC Bendix ACOM Software provides PC diagnostic capabilities for WABCO tractor and trailer pneumatic ABS, trailer RSS Plus ™, hydraulic ABS, Hydraulic Power Brake (HPB), electronic leveling valves for tractors, electronic leveling valves for trailers, Electronically Controlled Air Suspensions (ECAS) for buses, and OnGuard TM Collision Safety Systems. Haldex Diagnostic Software covers all in-cab warning light communications. It also provides diagnostic test results, ABS warning light resets also various odomoter functions.
    Bendix ACOM provides:

    Antilock Braking (ABS) / Automatic Traction Control (ATC) / Stability Control
    Electronic Controllers, including the Bendix® EC-60™, and EC-80™ units

    Collision Mitigation (FLC-20, FLR-20, FLR-21)
    The family of Bendix® Wingman® driver assistance systems, including Bendix Wingman ACB™, Wingman Advanced™, and Wingman Fusion™

    Alert & Data Systems
    VORAD®-VS400 and VORAD-VS500 radar systems
    Bendix® DIU (driver interface unit)
    SafetyDirect® processor (SDP)
    AutoVue® Lane Departure Warning Systems (3G and 4G)
    BlindSpotter® side object detection
    SmarTire® Tire Pressure Monitoring System (TPMS)
    Air Disc Brake (ADB) pad wear sensing

    Trailer Systems
    SmarTire® TrailerLink™ Tire Pressure Monitoring System (TPMS)
    Trailer ABS & Roll Stability, including:
  • Bendix® TABS6™-Standard
  • Bendix TABS6-Premium
  • Bendix TABS6-Advanced
    Legacy Trailer ABS systems, including:
  • EC-17™ electronic controller
  • EC-30 and EC-30T™ electronic controllers
  • MC-30™ ABS module
  • A18™ trailer ABS system
  • ABS U1x (Gen 4), ABS2x (Gen 5)
    New Features: J1939 diagnostics for pneumatic ABS J1939 diagnostics for ECAS Next Generation OnGuard Radar Diagnostics OnLane Lane Departure Warning Diagnostics J1939 bus monitor availability in main menu Fault descriptions and data appear in web browser with links to further information Legacy J1708 TOOLBOX still available for diagnostics.

The USB-Link 3 Wireless Edition connects to your PC, Tablet or Smart Phone, via Bluetooth and Wi-Fi. In addition the USB cable gives techs the option to directly connect to a PC when working in the field or during signal interruptions. Supports (CAN FD, DoIP) protocols with the compatibility for OEM diagnostics software. The Link 3 is Nexiq's most advanced VCI replacing the previous Link models.

__Vehicle Network Protocol Support__
CAN FD /J1939 FD/ISO15765 - 250K, 500 k, 1M b/s with Auto Baud detection (S Channels)
Single wire CAN (SWCAN)
ISO 11898-3 Fault Tolerant CAN (FTCAN)
J1850 VPW (Class 2)
J1850 PWM (SCP)
ISO 9141 / KWP2000 (ISO 14230) K/L line
ALDL 9600 and 8192 baud
ATEC 160 Baud
Windows vehicle communication API
RP1210 a/b/c
J2534 (2004 draft)
J2534-1 partial implementation (commercial vehicle focused)

__Interfaces to Computing Platforms__
USB 2.0 (vehicle to PC connection)
Bluetooth 2.1 + EDR
Wi-Fi (dual band)

__OEM Heavy Truck Compatible with NexIQ__
All Allison DOC Software
Bendix ACom
CAT Electronic Technician (ON-highway only)
Cummins Insite
Detroit Diesel Diagnostic Link
Eaton ServiceRanger
Freightliner Service Link
Hino eXplorer
International - ServiceMAXX Fleet Pro
International ABS
International DLB
International InTune
International IPC v2.02
VCAD Elite Mack/Volvo
V-Mac Service Tools
WABCO Toolbox

__Package Includes__
NEXIQ USB-Link 3 Wireless Edition (121052)
9-pin Deutsch Adapter (493128)
16-pin OBD II Adapter J1962, 1 meter (491113)
15' Latching USB cable (404032)
Carrying case
