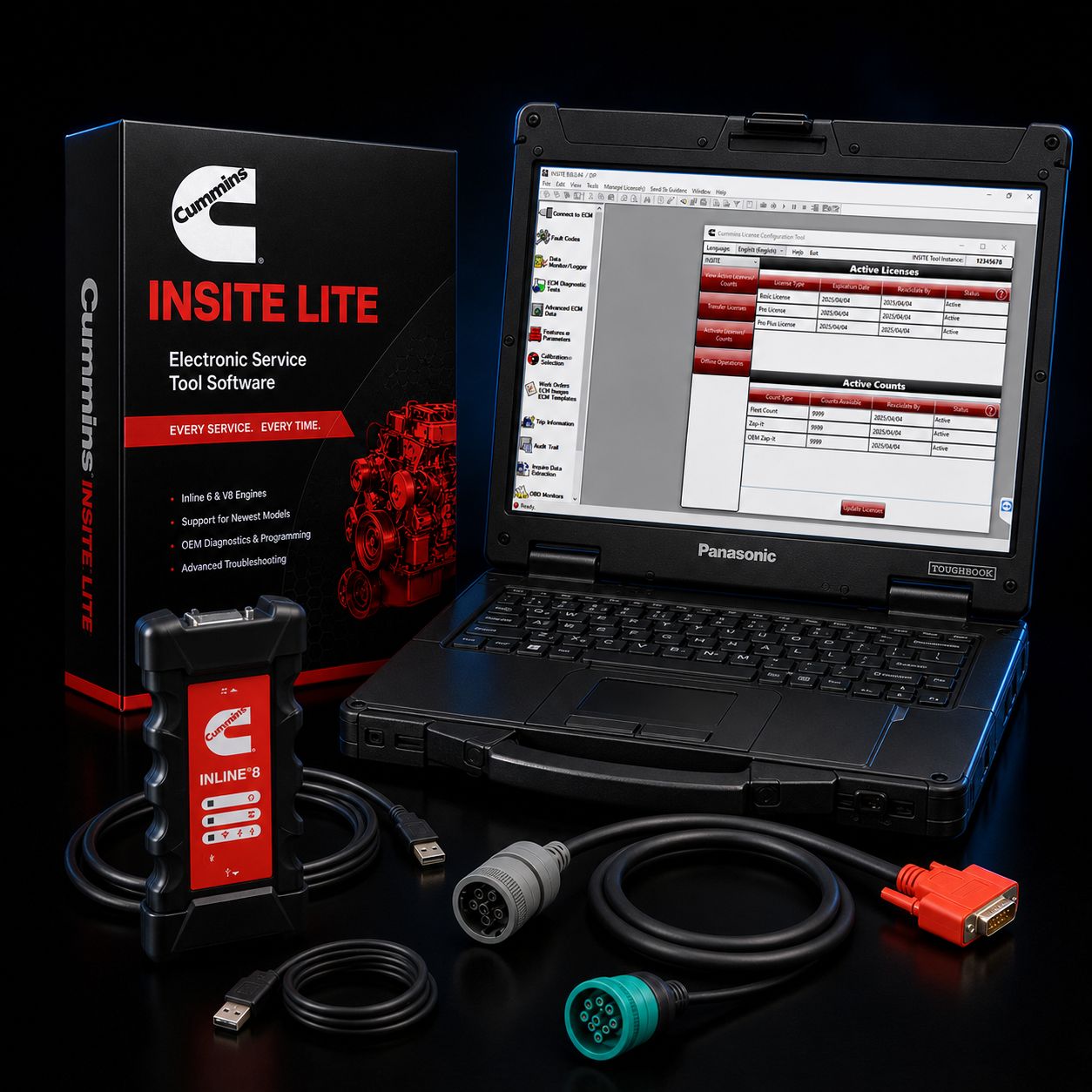

This is the all-Cummins kit at the top of our Cummins lineup. Cummins INSITE Lite, the current-generation Cummins INLINE 8 datalink adapter, and a brand-new Panasonic Toughbook FZ-55 with full 3-year Panasonic manufacturer warranty. Three pieces, three OEM-grade products, one bench-tested package that ships ready to plug into the truck and start working. Nothing in this box is refurbished, repaired, or pulled from another shop's bench. Every piece is current production, registered to the buyer, and covered by the manufacturer that built it.

This kit exists for the Cummins-focused operation that does not want to compromise on hardware longevity. If you have a fleet of B6.7s, ISXs, X15s, X12s, L9s, ISBs, or older legacy Cummins iron, and you plan to be working on Cummins engines five and seven years from now, the math on a brand-new Toughbook plus the OEM Cummins INLINE 8 adapter starts to look very different from the math on a refurbished laptop and a third-party J1939 dongle. New hardware on day one means a longer service life on the back end, the full Panasonic warranty if anything fails, and zero questions about prior shop abuse, prior battery cycle counts, or prior fluid intrusion that a refurbisher may or may not have caught.

We pre-install INSITE Lite, activate the license against the FZ-55 you receive, install the Cummins INLINE drivers, register the adapter, run a known-good test connection against a live Cummins engine on our bench, and box it up. When it lands at your shop, you uncoil the 9-pin Deutsch cable, plug it into the truck, double-click the INSITE icon, and you are reading codes inside two minutes.

Kit Includes: - Cummins INSITE Lite software license, 12-month subscription, pre-installed and activated to the included Toughbook - Cummins INLINE 8 datalink adapter, P/N 6395440, current-generation Cummins-branded RP1210 adapter - BRAND NEW Panasonic Toughbook FZ-55 MK3 with Windows 11 Pro pre-installed, full 3-year Panasonic manufacturer warranty - USB cable for the INLINE 8 (also supports Bluetooth and Wi-Fi pairing once configured) - 9-pin Deutsch (J1939) cable for Class 7 and Class 8 truck applications - 6-pin Deutsch cable for legacy J1708/J1587 applications including older ISX, ISM, ISC, ISB, and N14 platforms - OBD-II 16-pin cable for light-duty and medium-duty applications including 6.7L Cummins in Ram pickups - Toughbook AC power adapter and cord - Activation documentation, license registration paperwork, and INSITE quick-start sheet - Heavy Duty Truck Diagnostics bench-test certificate

About INSITE Lite

INSITE is the factory-authored service tool for Cummins electronic engines. It is the same software platform used by Cummins dealer technicians and authorized service network shops. The Lite tier covers everyday diagnostic and maintenance work for independent shops, fleet maintenance bays, and owner-operators who service Cummins engines but do not need ECM reflashing or factory parameter rewrites.

What INSITE Lite does: - Reads and clears active and inactive engine fault codes across the entire modern Cummins lineup - Streams live data with commanded-versus-actual parameter pairs so you can see what the ECM is asking for and what the sensors are reporting back - Runs bidirectional component testing including cylinder cutout, EGR valve sweep, VGT actuator sweep, dosing valve test, lift pump cycle, grid heater test, and individual injector kill - Triggers stationary forced regens on equipped Cummins aftertreatment systems - Records snapshot data during fault occurrence so intermittent issues do not vanish before you can read them - Displays the full Cummins-specific parameter set including rail pressure commanded versus actual, individual injector trim values, IMV duty cycle, EGR position feedback, VGT vane position, turbo speed, DPF soot load and ash load estimates, SCR inlet and outlet NOx, DEF dosing rate, and fuel pump pressure - Pulls up wiring diagrams, sensor pinouts, and component location maps directly inside the application - Generates printable diagnostic reports for customer paperwork and warranty submissions

INSITE Lite vs INSITE Pro - the upgrade path

Lite handles diagnosis. Pro handles diagnosis plus parameter changes and reflashing. If your shop reads codes, runs functional tests, fires forced regens, and replaces components based on what the engine tells you, Lite covers your work. If your shop also does ECM reflashes, parameter rewrites, calibration uploads, or has to load Cummins-released firmware updates onto customer engines, you need Pro. Pro also unlocks horsepower-tier upgrades on engines where the customer paid Cummins for a higher rating. We sell both tiers. Customers who buy this Lite kit and later need Pro typically pay the upgrade delta rather than buying a second license, and we walk you through that conversation when the time comes.

About the Cummins INLINE 8

The INLINE 8 (P/N 6395440) is Cummins' current-generation OEM datalink adapter, the device Cummins designed and built specifically to talk to Cummins engines through INSITE. It is fully RP1210-compliant and RP1227-compliant, which means it works as a generic datalink adapter for any RP1210 application, not just INSITE. That makes it useful in a multi-make shop that primarily runs Cummins but still sees occasional Detroit, CAT, Volvo, Mack, Allison, or International work.

Protocol support on the INLINE 8 covers J1939 at 250k, 500k, and up to 1 megabaud, J1708/J1587 for legacy applications, ISO 15765, ISO 9141 K and L line, KWP2000, CAN FD for newer engine architectures, J1939 FD, Diagnostics Over IP (DoIP) for modern Class 8 platforms moving to Ethernet-based diagnostic stacks, Single Wire CAN, and CAT Data Link (CDL). Three simultaneous CAN connections are supported, which matters when you are working on a truck where the engine, transmission, and aftertreatment ECMs are on separate buses and you want to monitor all three at once.

Connectivity is USB, Bluetooth 5.1, and Wi-Fi (dual-band 802.11 a/b/g/n/ac). USB is the simplest path and what we configure out of the box. Bluetooth and Wi-Fi pairing are useful if you want to walk around the truck during a test drive or operate the laptop from inside the cab while the adapter stays at the diagnostic port. We leave both wireless options enabled but unpaired so you can configure them to your shop network if you want.

The evolution from INLINE 7 to INLINE 8 is mostly about wireless and protocol forward-compatibility. The INLINE 7 already supported CAN FD, J1939 FD, and DoIP at the protocol level. The INLINE 8 builds on that platform with refreshed firmware, RP1227 compliance, Bluetooth 5.1 instead of older Bluetooth, dual-band Wi-Fi, and ongoing Cummins firmware support that the older INLINE 5 and INLINE 6 adapters no longer receive. If you are buying new in 2026, the INLINE 8 is the right adapter to put on a Cummins-focused bench.

INLINE 8 vs USB-Link 3 - the honest tradeoff

We get this question every week. Cummins' USB-Link 3 (the Nexiq-built device Cummins resells) and the Cummins INLINE 8 both work with INSITE. Both are RP1210-compliant. The INLINE 8 is the Cummins-branded, Cummins-built adapter designed specifically for INSITE workflows and tested first on every INSITE release. The USB-Link 3 is the more generic multi-make adapter that ships with broader software support libraries from Nexiq.

For a Cummins-focused shop, the INLINE 8 is the cleaner choice. INSITE recognizes it without driver hand-holding, the firmware update path comes through Cummins directly, and there are no compatibility gaps when Cummins releases a new INSITE version. If your shop is multi-make and you want one adapter that talks to INSITE, JPRO, Detroit DDDL, CAT ET, Allison DOC, ServiceMaxx, PTT, and similar tools through a single driver stack, the USB-Link 3 is the more universal pick. We sell both. This kit ships the INLINE 8 because the kit is built around INSITE.

About the BRAND NEW Panasonic Toughbook FZ-55

This is a current-production Toughbook FZ-55 MK3, configured for shop diagnostic work and shipped sealed from Panasonic's authorized supply chain. Brand new. Not refurbished. Not "renewed." Not pulled from a fleet refresh. The serial number registers to the buyer on first power-on, the warranty clock starts when you receive it, and Panasonic backs every component for the full warranty period.

Hardware specifications: - 14" anti-glare display, Full HD 1920x1080 or HD 1366x768 depending on configuration, up to 1000 nits brightness on the high-bright touch variant. The anti-glare coating matters when you are working under shop lights, in a sunlit yard, or in the cab of a truck with the windshield throwing reflection across the screen - Intel 13th generation Core i5 or i7 processor (i5-1345U vPro standard, i7-1370P available on higher configurations) with Intel Iris Xe or UHD graphics depending on processor SKU - 16GB or 32GB DDR4 RAM standard, configurable up to 64GB on higher tiers - 512GB OPAL-compliant SSD standard, configurable up to 3TB - Magnesium alloy chassis, recessed display bezel for impact protection - IP53-rated keyboard and touchpad - sealed against shop dust and splash, color-selectable backlit keys for night work - MIL-STD-810H tested - 3-foot drop spec, vibration, altitude, sand, freezing temperature, and high-heat operation. The MIL-STD-810H spec is the 2019 update to the long-running 810 series and is the current military environmental standard - Hot-swappable dual battery configuration available, primary battery plus secondary battery in the rear expansion bay, total runtime over 23 hours typical use. The hot-swap design lets you change one battery while the other continues to power the system - no shutdown, no lost diagnostic session - Ports: 2x USB-A 3.1 Gen 1, 1x USB-C, 1x HDMI 2.0, 1x SD card reader, 1x 1-Gbps RJ-45 Ethernet, 3.5mm audio in/out combo, 24-pin docking connector - Optional rear expansion: VGA + Serial + USB-A, VGA + Serial + LAN, or USB-C + USB-A. Serial expansion matters for older Cummins applications and for shops still running tools that want a real RS-232 port - Wi-Fi 6E and optional 4G LTE for shops that need cellular fallback - Infrared webcam with Windows Hello biometric login - Weight approximately 4.9 pounds depending on configuration - Windows 11 Pro 64-bit pre-installed and activated - Full Panasonic 3-year manufacturer warranty included standard on new units

The FZ-55 sits in Panasonic's semi-rugged tier - not the fully-rugged Toughbook 40 family, but considerably tougher than any consumer business laptop on the market. For diagnostic work in a heavy-truck shop, semi-rugged is the right tier. You get drop survival, sealed keyboard, anti-glare display, and the ability to run for an entire long shift on dual hot-swap batteries, without paying the weight penalty and the price premium of a fully-rugged unit.

NEW vs Refurbished Toughbook - the honest tradeoff

We sell both. Refurbished Toughbooks save real money and they perform fine for most diagnostic workflows - we have refurb units in customer fleets that have been running for five-plus years. The honest tradeoff with refurb is that someone else used the laptop first, the warranty is whatever the refurbisher offers (typically 90 days to one year), and the cosmetic condition is "good" rather than "new in box." For a one-laptop owner-operator or a shop on a tight tool budget, refurb makes sense.

NEW makes sense when you want maximum service life on the back end, the full 3-year Panasonic manufacturer warranty, and zero ambiguity about prior history. New Toughbooks routinely run seven-plus years in shop service. If your plan is to buy this kit, drop the laptop on the bench, and not think about replacing it until the early 2030s, the new-laptop premium pays for itself in warranty coverage, longer remaining service life, and fresh batteries that have not been cycled by another owner.

Why Toughbooks Beat Consumer Laptops in Shop Bays

Diagnostic laptops live a hard life. They get set on fenders and forgotten. They get knocked off stools. They get diesel fuel splashed on them. They get cleaned with shop towels that have brake cleaner on them. The keyboard catches metal shavings, the vents inhale shop dust, and the screen gets pelted by whatever is in the air around a wheel-off PM. A consumer laptop in that environment is a 12-to-18-month expense.

A Toughbook in that environment is a five-to-seven-year asset. The magnesium chassis takes the drops. The sealed keyboard ignores the splash. The fanless or low-airflow thermal design keeps shop dust from migrating into the heat sink. The recessed display bezel keeps the screen alive when something slides across the bench. The hot-swap battery means a dying battery does not end the diagnostic session. The 3-foot MIL-STD-810H drop spec means an accidental tumble off the workbench does not end the laptop. None of this matters until the day it does, and then it is the only thing that matters.

Engine Coverage via INSITE

Modern on-highway: - X15 (2017-current) including X15 Performance, X15 Efficiency, and X15 Productivity Series - X12 (2018-current) - the X12 mid-bore on-highway platform - B6.7 (2018-current) - the medium-duty replacement for the ISB6.7

Late-model on-highway: - ISX15 (2010-2016) including the troubleshooting-heavy 2013-2015 emissions configurations - ISX12 (2010-2016) - ISL9 / L9 (2010-current) - the school bus and refuse truck workhorse - ISB6.7 (2007-2018) including pickup, medium-duty, and bus applications

Legacy on-highway: - ISX (2001-2010) - the pre-EGR and EGR-era ISX, including the dual overhead cam Signature/ISX - ISM (1998-2010) - ISC 8.3 (1998-2007) - ISL (1998-2010) - ISB 5.9 (1998-2007) - including the 24-valve common-rail Ram pickup engine - N14 Celect Plus (limited support depending on calibration)

Off-highway and industrial: - QSB, QSC, QSL, QSM, QSX, QSK industrial engines - KTA Series industrial engines - Marine, agricultural, mining, and stationary power applications running Cummins ECMs

If you have a Cummins engine with an electronic ECM and a J1939 or J1708 datalink, INSITE is the factory tool to talk to it. The Lite tier covers the diagnostic and bidirectional functional work for every engine listed above.

Real-World Workflow Examples

Active regen complaint, 2018 X15 in a Class 8 sleeper. Driver reports "DPF light on, engine derate." Plug the INLINE 8 into the 9-pin Deutsch port, open INSITE, pull active codes. Read SCR-related fault and a soot load estimate at 110%. Run a stationary forced regen from INSITE. Watch DPF inlet temperature climb past 1100 F, soot load drop, regen complete in 35 minutes. Clear codes, road-test, document. Done in under an hour.

Hard-start complaint, 2014 ISX15. Pull active and inactive codes, see rail pressure desired versus actual, low rail pressure during cranking. Use INSITE bidirectional test to cycle the lift pump while watching rail pressure climb. Confirm fuel supply OK. Run injector trim values - one cylinder shows trim at the rail of the adjustment range. Snapshot record a cold start, review the data, target the suspect injector for replacement.

Owner-op intermittent stall, 2010 ISB 6.7 in a Ram 3500. Plug INSITE in via the OBD-II adapter, set up snapshot recording with engine RPM, fuel pressure, ECM voltage, and crankshaft position sensor signal. Hand the truck back, tell the owner to drive it normally. Next time it stalls he brings it back, you read the snapshot, and the dropout shows up in the cam-crank correlation. Replace the cam sensor.

Common Cummins Faults INSITE Lite Helps Diagnose

• SPN 5246 / FMI 0 - aftertreatment system level 3 inducement (urea SCR fault, derate)
• SPN 3246 / FMI 0 - DPF outlet temperature high (incomplete regen, plugged DPF)
• SPN 3251 / FMI 0/2 - DPF differential pressure abnormal
• SPN 1761 / FMI 17 - DEF tank level low or DEF quality fault
• SPN 157 / FMI 18 - rail pressure low at startup (lift pump, suction-side restriction, or HPCR pump fault)
• SPN 102 / FMI 18 - boost pressure low (turbo, charge-air leak, VGT vane stuck)
• SPN 3216 / FMI 2 - SCR inlet NOx sensor signal abnormal
• SPN 5571 / FMI 0 - DEF dosing valve fault (clogged dosing nozzle, harness, or dosing module)
• SPN 1209 / FMI 3 - exhaust gas pressure sensor (often fouled by soot)
• SPN 411 / FMI 3 / 4 - EGR differential pressure circuit fault
• Cummins-proprietary SIDs and PIDs across the legacy ISX, ISM, and ISB platforms that generic scan tools cannot decode

INSITE shows the SPN/FMI, the Cummins fault description, the suggested troubleshooting tree, the affected components, and the wiring diagram for each fault. That is the difference between a generic J1939 reader and the factory tool.

License and Subscription Terms

INSITE Lite is sold as a 12-month subscription. The license is machine-locked to the Toughbook serial number we install it on. During the active 12 months you have the full Lite feature set: code reading and clearing, live data, bidirectional tests, forced regens, snapshot recording, wiring diagrams, and printable reports. After 12 months the license reverts to read-only mode (still able to read codes and live data, but bidirectional tests and forced regens are locked). Renewal is annual and we handle the renewal paperwork for you when it comes due.

Anti-piracy notice: Cummins watermarks and tracks INSITE installations. Cracked, hacked, or "free" copies of INSITE that circulate online are pirated software and Cummins audits installations. A pirated install can brick the laptop's INSITE database, get the install banned from Cummins servers, and create real legal exposure for the shop owner. Buy the real license. The math works out.

What is NOT Included (and the Pro upgrade path):

INSITE Lite does not reflash ECMs. It does not write parameter changes that require a dealer password. It does not load Cummins-released calibration updates onto customer engines. It does not unlock horsepower-rating upgrades that the customer purchased from Cummins corporate. If you need any of those, the path is the INSITE Pro tier, which we sell as a separate kit or as an upgrade from this Lite license.

Some specific functions are dealer-password-locked at the Cummins corporate level regardless of Lite or Pro - certain emissions-related parameters, certain warranty-flagging changes, and certain proprietary calibration uploads are reserved for Cummins authorized dealers and are not unlockable through any aftermarket purchase. We are honest about that boundary on the front end.

FAQ

Q: New versus refurb Toughbook for a one-truck owner-operator? A: Honest answer - refurb is fine for one truck. You will save meaningful money, the diagnostic experience is identical, and the laptop will run for years. New makes sense if you plan to expand to a small fleet, if you want the 3-year warranty for peace of mind, or if you want maximum remaining service life. We carry both kits at different price points so you can buy the one that fits your operation.

Q: Hot-swap battery - what does it actually buy me? A: It buys you uninterrupted diagnostic sessions on long jobs. If you are running a 2-hour forced regen, recording a 90-minute snapshot during a road test, or doing an aftertreatment cleanout that involves multiple ECM cycles, the dual hot-swap means a dying primary battery does not crash the session. You pop the depleted battery, slide a charged one in, and the secondary battery keeps the system running through the swap. Real shops doing real work hit this scenario more than they expect.

Q: INLINE 8 or USB-Link 3 for a Cummins-only shop? A: INLINE 8. It is the Cummins-built adapter, Cummins tests it first against every new INSITE release, and the driver path is cleaner. The USB-Link 3 is the right pick for multi-make shops that want one adapter for INSITE, JPRO, DDDL, CAT ET, and ServiceMaxx through a unified driver stack. For a Cummins-only or Cummins-primary shop, the INLINE 8 is the right call.

Q: Can I move my INSITE license to a different laptop later? A: Yes, with paperwork. The license is machine-locked but transferable. Cummins requires a deactivation request from the original machine and a reactivation request on the new machine. We handle that paperwork as part of our after-sale support if you need to migrate the install.

Q: What does the FZ-55 warranty actually cover? A: Brand-new FZ-55 units ship with full Panasonic 3-year manufacturer warranty. That covers manufacturing defects, hardware failures, and component-level issues during the warranty period. Accidental damage protection (drops, spills, theft) is a separate extended-coverage product available from Panasonic if you want that layer of protection on top.

Q: Will this kit work on my pre-2007 ISX or N14? A: Mostly yes. INSITE Lite supports legacy J1708/J1587 Cummins applications including ISX, ISM, ISC, ISL, ISB 5.9, and many N14 Celect Plus configurations. Use the 6-pin Deutsch cable for those connections. The depth of bidirectional support varies by engine and calibration - some very early Celect engines have limited functional test coverage. Call us with the specific engine and we will tell you exactly what works.

Q: How fast can I be reading codes after the kit arrives? A: Roughly two minutes from box-open to first code read. The laptop is configured, INSITE is installed and licensed, the INLINE 8 drivers are installed, and the adapter is registered. Plug the 9-pin into the truck, plug the USB into the laptop, double-click INSITE, hit Connect. That is the workflow.

Why Buy This Kit From Heavy Duty Truck Diagnostics

Every kit gets bench-tested before it ships. We plug the INLINE 8 into a live Cummins engine on our bench, fire INSITE, pull codes, run at least one bidirectional test, and confirm the install is clean. If anything in the chain misbehaves, we fix it before the kit leaves our facility - not after you have it on your bench at 4:30 on a Friday with a truck waiting on a regen.

We answer the phone. Real humans, in our shop, who have run INSITE on real Cummins engines. If you call us at 800-399-9495 with a Cummins question, you get someone who can actually help, not a ticket queue.

We sell the same kit to one-truck owner-ops and to multi-bay fleet maintenance shops. The kit is the same. The price is the same. The bench-test is the same. The post-sale support is the same.

Call 800-399-9495 with questions about Cummins-side workflow, to discuss whether the Lite tier is the right fit for your shop versus a Pro upgrade, or to confirm engine coverage on your specific applications. We will walk through it with you before you buy.
