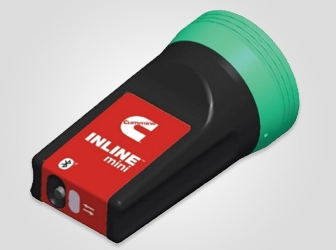

Cummins Inline Mini Data Adapter - 5299909

Features:

• Compatible with iOS and Android Apps
• Integrated 9-pin connector
• Bluetooth Wireless Communication
• Automatic CAN data rate detection
• Push-button pairing activation
• Power/Data LED status Indicator

Specifications:

• Dimensions: 3.1'' x 1.6'' x 1.6'' (78 x 41 x 41 mm)
• Weight: 4.1 oz. (120 g) Packaged: 1.7 oz. (50 g)
• Power Requirement: 6-32 VDC, 0.3A max
• Operating Temperature: -20 to +50 °C
• Storage Temperature: -40 to +70 °C
• Protocols Supported:
• SAE J1939 (250 or 500 Kb/s)
• CAN (250 or 500 Kb/s)
• ISO15765 (500 Kb/s)
• SAE J1708/J1587 (9600 b/s)
• Processor: MCF52258 ColdFire (32-bit, 64MHz)
• Memory: RAM: 576 KBÂ Â FLASH: 2.5 MB
• Bluetooth: 4.2 BR/EDR Class 1.5 (15mW)
• Connector Pin Assignments:
  • A – GND
  • B – V­­BATT (12/24 VDC)
  • C – CAN_H
  • D – CAN1_L
  • E – No Connection
  • F – CAN3_H or J1708(+)
  • G – CAN3_L or J1708(–)
  • H – CAN2_H
  • J – CAN2_L

Wireless Certifications: FCC (US), IC (Canada), CE (European Union), and Australia

EMC Certifications: EN 301 489-1:V1.9.2 (2011-09), EN 301 489-17:V2.2.1 (2012-09)

Safety Certifications: EN 60950-1:2006 (2nd Ed.) + Am 1:2010 + Am 2:2013

Part Number: 529990900
