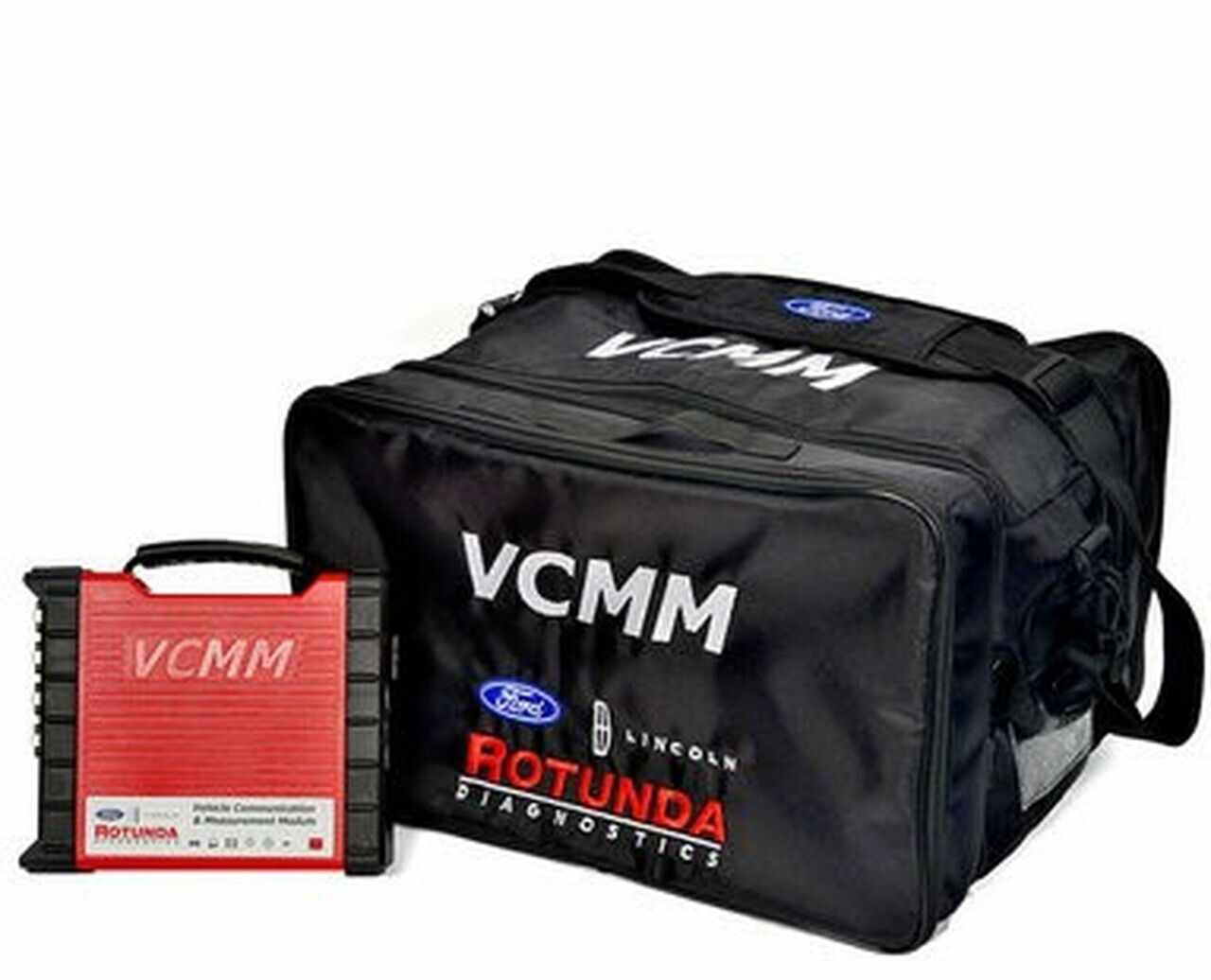

Ford VCMM 164-R9823 Advanced Kit

**This is a special order and orders fulfill within 30 days**

Update - Pressure / Vacuum Transducer (164-R9833), Fuel Hose Assembly (164-R9533), and Transmission Extension Hose (164-R9834) are no longer included in the VCMM Advanced Kit.

The Vehicle Communication & Measurement Module (VCMM) combines all of the functionality of the VMM, VCM II, and MTS 4000/4100 vibration analyzer in an industry leading one-box solution. The combining of this functionality will provide dealers with industry leading diagnostic capability at a significantly lower cost of ownership. The Advanced kit includes all components and functionality found in the base kit P/N 164-R9822 along with the advance driveline balance kit and secondary ignition testing capability.

Key Features:

• Vehicle Communication (VCM II capability)
• Customer Flight Recorder capable
• 4-Channel Oscilloscope
• 4-Channel Digital Multi-meter
• 5th-Channel direct monitoring of the DLC connector
• Vibration Analysis
• Driveline Balance
• Signal Generator

4/5 Channel Oscilloscope

• Improved user interface from VMM
• Four independent differential Input Channels enables independent monitoring of signal types such as monitoring voltage while concurrently measuring voltage drop across the circuit.
• A Fifth High Speed Channel that can directly monitor CAN signals at the DLC connector
• Capture/Record capability to assist in capturing intermittent issues
• Advanced Triggering capability
• Pre-Configured setup configuration for common signals and procedures
• New Time/Angle time based settings (CKP/CMP timing diagnostics)

Vibration Analysis and Driveline Balance

• Similar functionality to the MTS 4000/4100
• Improved user interface with reduced configuration and setup time
• Color display
• Record capacity
• Strobe light Pick up loop for improved component identification*
• Second vibration transducer
• Dual Plane driveline balance

The Digital Multi-Meter

• Monitor up to four independent readings at the same time
• Capture/Record history
• Graphing capability for up to two channels
• Voltage, Current, Resistance, Pulse Width, Duty Cycle, Frequency and Period

Signal Generator

• User configurable settings for signal waveform types: sine, square, triangle, pulse generator, DC voltage and arbitrary.
• Verify integrity of module input wiring and the module hardware
• Improved interface and greater adjustability of voltage and frequency
